KRANZLE K10 - PORTABLE, SPACE-SAVING & COMPACT. QUICK RELEASE FITTINGS. HEAVY DUTY YET COMPACT. EXCEPTIONALLY LONG LIFE EXPECTANCY

The Kranzle HD portable range was originally designed for the hire trade where heavy duty, low maintenance & exceptionally long service life expectancy are a necessity. They have rapidly gone on to become the preferred choice of Professional Valeters & Detailers due to their compact, space-saving design & durability. With it's incredibly durable design the HD 10/122 TS is perfect for semi-industrial & commercial use.

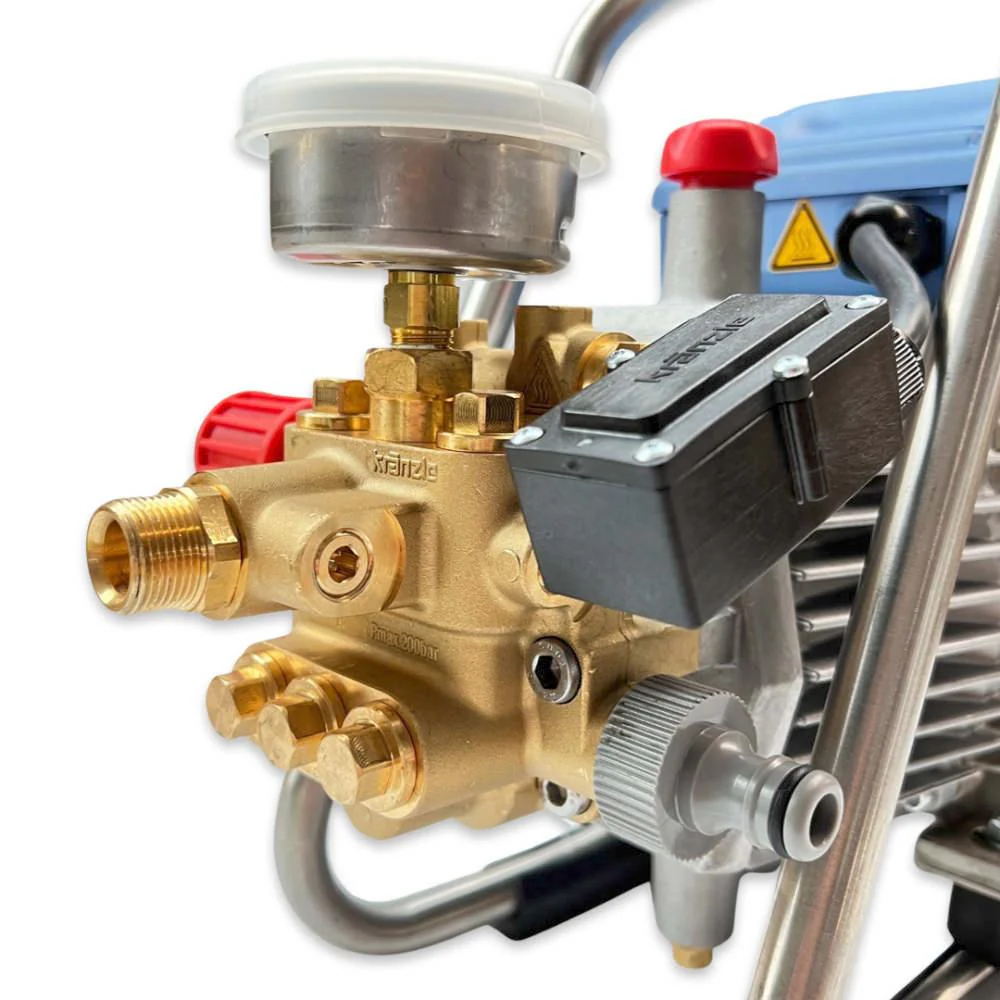

The soft start mechanism eases the load on the motor maximising the machines longevity. The core of every high-pressure cleaner is its high-pressure pump. Only forged special brass is used for the pump heads to guarantee excellent quality and durability. All pumps are made on CNC machining centres with electronic control systems to ensure maximum precision and compliance to specifications. This technology package is complemented by a number of details which, in total, make the difference in performance, safety and durability.

With a 10-year anti-corrosion guarantee - they cannot wear out! 'Cheaper' machine soften seen in high street stores have electric motors that are designed to only last as long as the pump, which worryingly is only 40-50 hours. The pressure is fully adjustable and at maximum will give nearly 2000 psi, but with good volume water flow behind it - making this around 50% more powerful than machines with only 7 or 8 ltrs/min (3500 effective-psi if you're using our DirtKiller lance). DirtKiller lance's give fantastic results when cleaning stone work and block paving, etc. It is very aggressive, you wouldn't want to use it on your car, the spinning pencil jet combines concentrated power over a larger working area.

THIS MODEL IS THE TOTAL STOP VERSION WHICH INCLUDES THE PRESSURE SWITCH SYSTEM TO TURN THE MACHINE OFF AFTER BEING LEFT RUNNING.

BYPASS OPERATION

All high-pressure cleaners are designed to switch to pressure reduced bypass operation when the trigger gun with safety catch is closed. The water is thus circulated at a residual pressure of approx. 10 bar. Pump and motor are discharged leading not only to a significant prolongation of the service life but to energy savings as well. Machines with the additional qualification TS completely switch off at this point.

STAINLESS STEEL MANOMETER

All high-pressure cleaners are equipped with large, clearly visible, glycerine dampened stainless steel gauges.

DRY-RUN SAFETY

All pumps are equipped with a fabric sleeve and a Teflon graphite backing ring on each plunger. The excellent lubricating properties of Teflon graphite serve to reduce both the friction and temperature inside the pump. For this reason, Kränzle pumps can be run without water for a certain period without suffering any damage.

CORROSION PROTECTION

All parts of the pump and safety devices that come into contact with water are made of stainless steel or special brass. Machine failure due to corrosion is impossible, and this is what makes the operating safety of all Kränzle high-pressure cleaners so unique.

FEATURES & BENEFITS

Pressure switch: Total Stop (TS)
Heavy duty yet compact
Exceptionally long life expectancy
Unique 'Soft Start'
Used via the mains or with a generator
Fully adjustable pressure regulation
Low maintenance
Slow running, silent electric motor
Insensitive to voltage fluctuations
10 Year Anti-Corrosion guarantee
Quick Release
Practical carrying handle
Portable and space saving
Compact design

TECHNICAL DATA

Power supply: 240v
Operating pressure: 30-120 bar / 3-12 MPa
Max overpressure: 135 bar / 13.5 MPa
Water flow rate: 10 l/m (600 l/h)
Motor speed: 2800 rpm
Connected load Kw: 7.5 A, 50 Hz
Power intake / output: 2.5 kW / 1.8 kW
Weight: 23kg
Download: Operating Manual

Don't forget to change your oil after the first 50 hours of use - Kranzle recommend using genuine KRANZLE OIL.

EQUIPMENT

10m of steel braided rubber coated high pressure hose
5m of power cable (complete with plug)
M2000 Trigger gun with safety catch
Stainless steel lance with flat jet nozzle

THE IDEAL TOOL FOR MOBILE DETAILERS

All Kranzle machines are manufactured with special forged brass housings with a 10 year anti-corrosion guarantee on the pump head, they will not just ‘wear out’ like many domestic pressure washers. Connections are all brass screw fittings sealed by an O-ring making maintenance extremely simple.

FIRST-CLASS MOBILITY

The extremely compact design is ideal for storing in tight spaces or installing in a mobile detailing van setup.

FLEXIBILITY

The slow running 4 pole motor is close to silent running and can withstand voltage fluctuations of up to 10%.

COMPACT SIZE

Designed to be compact and durable so that you can fit the machine in your van along with your other detailing equipment. The HD 10/122 TS is the perfect solution for a mobile valeting business.

ADJUSTABLE PRESSURE

With controllable pressure the HD 10/122 TS can adapt to any cleaning situation with a turn of the red pressure controller valve for sensitive areas, vehicle wraps or decals.

ACCESSORY OPTIONS

When it comes the accessories the powerful HD 10/122 TS is not limited, using the simple quick release system you can add Foam Bottles, Dirtkiller Nozzles, Short Trigger Guns or even our most popular Foam Bundle.

Kranzle Pressure Washers

Kranzle 1050 P | Weekend Warrior Bundle

Kranzle 1050 P | The Ultimate Weekend Warrior Bundle

Kranzle | Professional Hot Water Pressure Washer with Hose Reel | Therm 635-1 T

Kranzle Therm 715 T Inc Hose Reel

Kranzle Ultimate MTM Pressure Washer Bundle

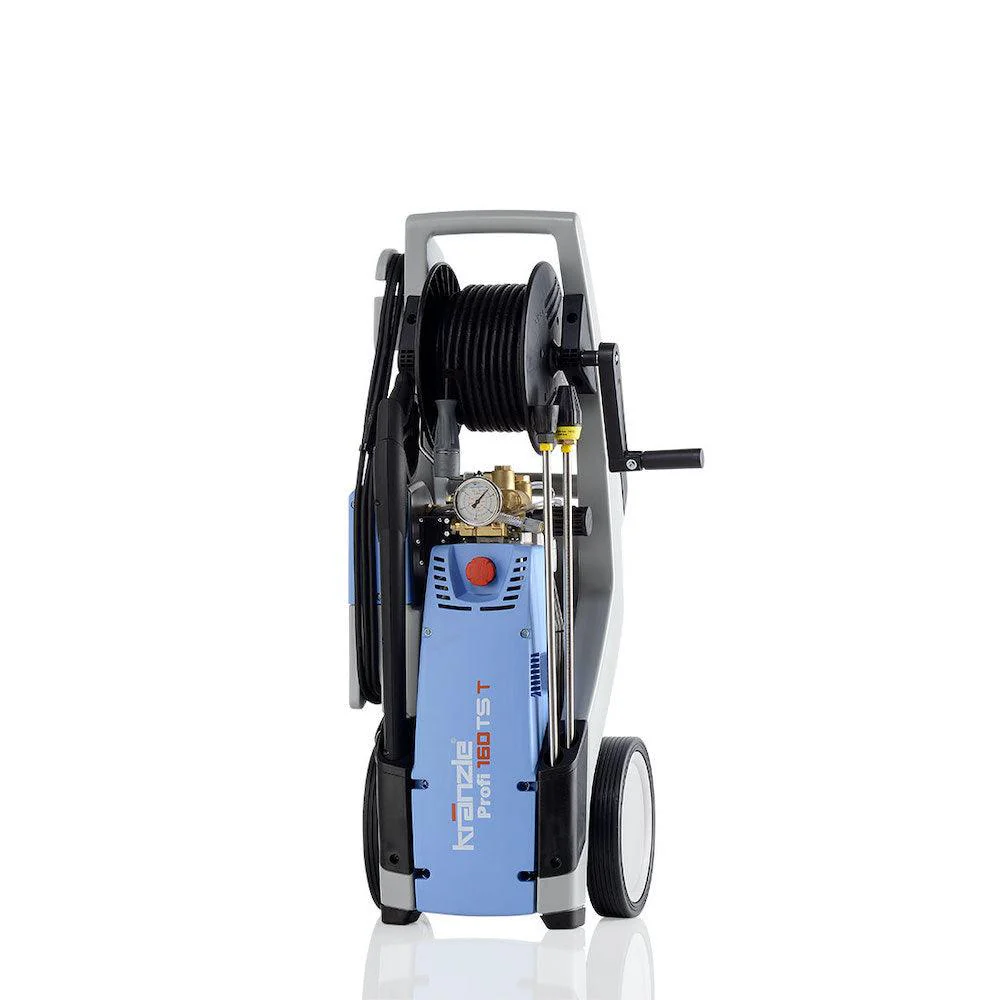

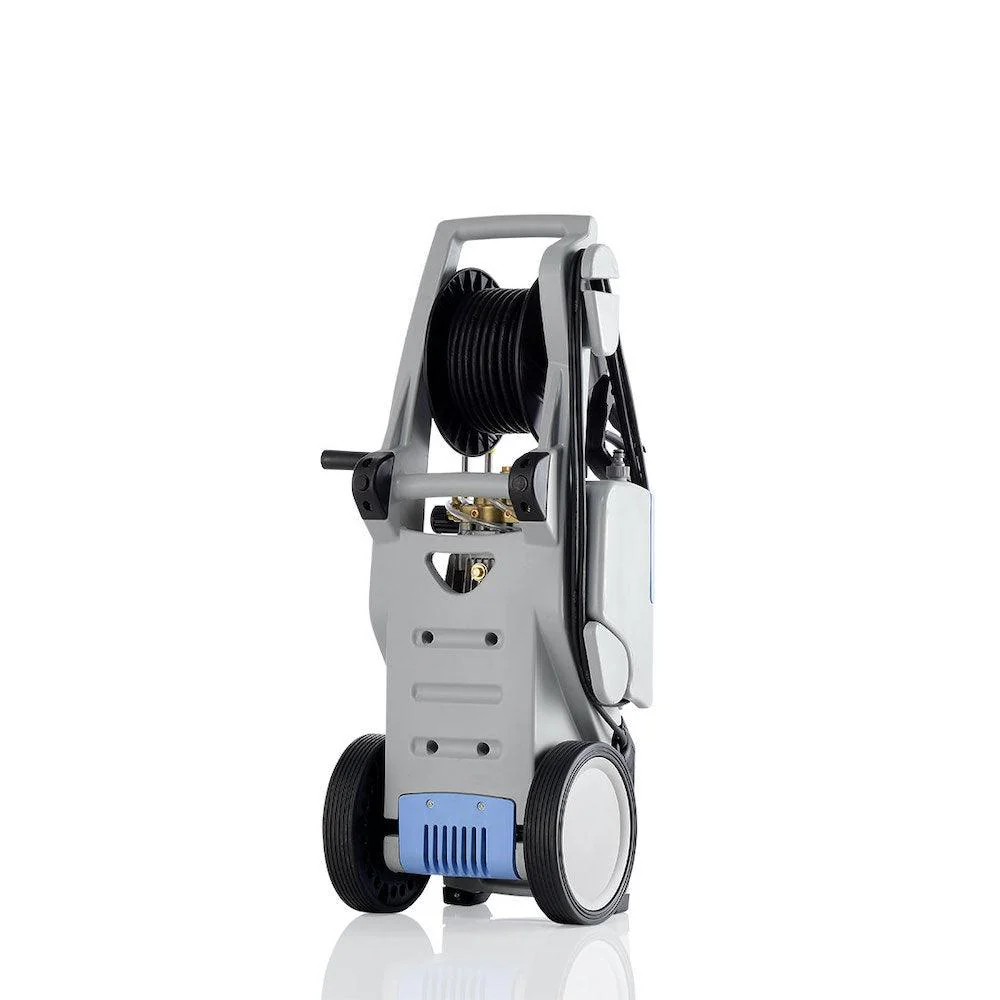

Kranzle PROFI 160 TST
